Power Wall
electric infrastructure for the Next Generation garage.
THE MODERN GARAGE
Storage
EV Charging
Power Tools
Recreation
Batteries
Storage
Appliances
Once a just storage space, the garage now supports a network of electric tools, batteries, and appliances.
2000
2026
The garage Is Evolving.
Work Area
Garage Electricity Usage
Has Increased 1900% Since 2000.
Energy Usage Multiplier
1.6x
2.7x
4.8x
11.5x
20.5x
The garage has the fastest-growing electricity demand out of all spaces in the modern home.
THE PROBLEM
Demand Increased.
​
Access Stayed Fixed.
We still rely on the same electric infrastructure from 26 years ago.
2000
2026

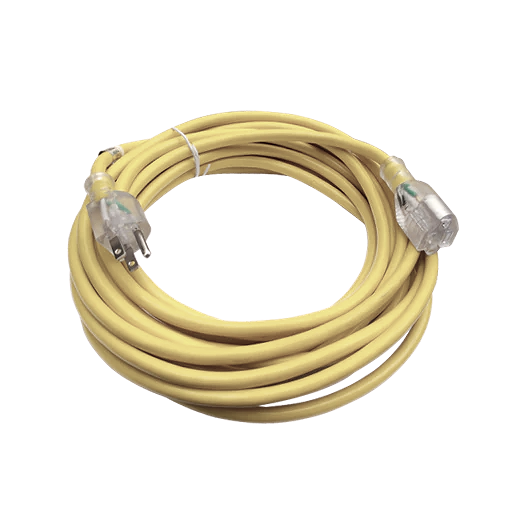

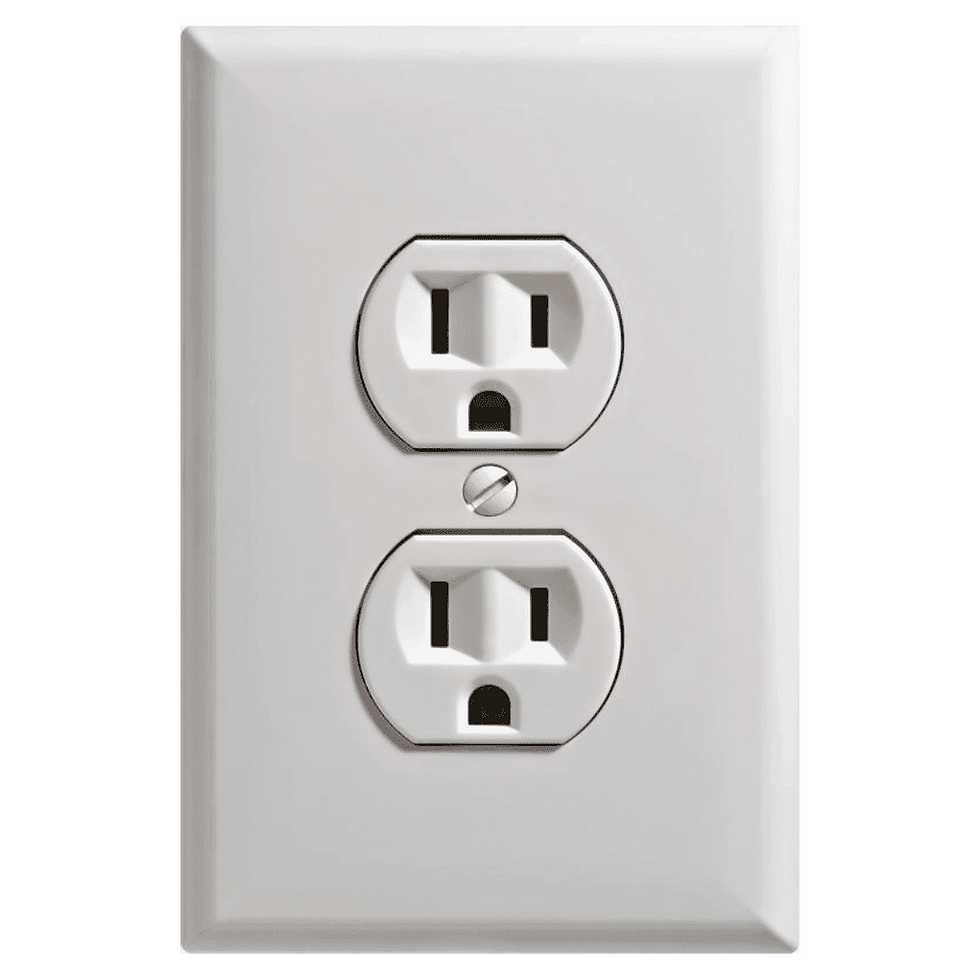

Outlets are inconveniently located.

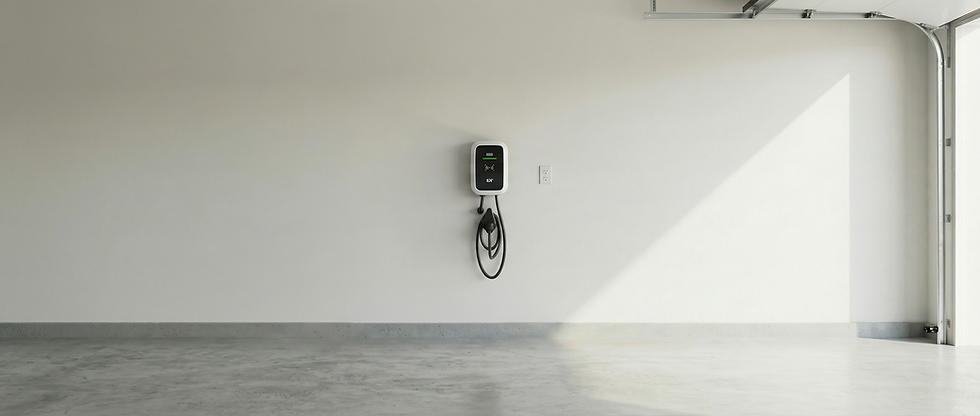

EV Chargers installations are expensive.
Multiple electric vehicles require multiple installations.
Power access should be able to grow and adapt to its environment.
INTRODUCING
Power wall
A modular ecosystem that combines power and storage.
Power Access
EV Charger
Storage
POWER WALL
Power Box

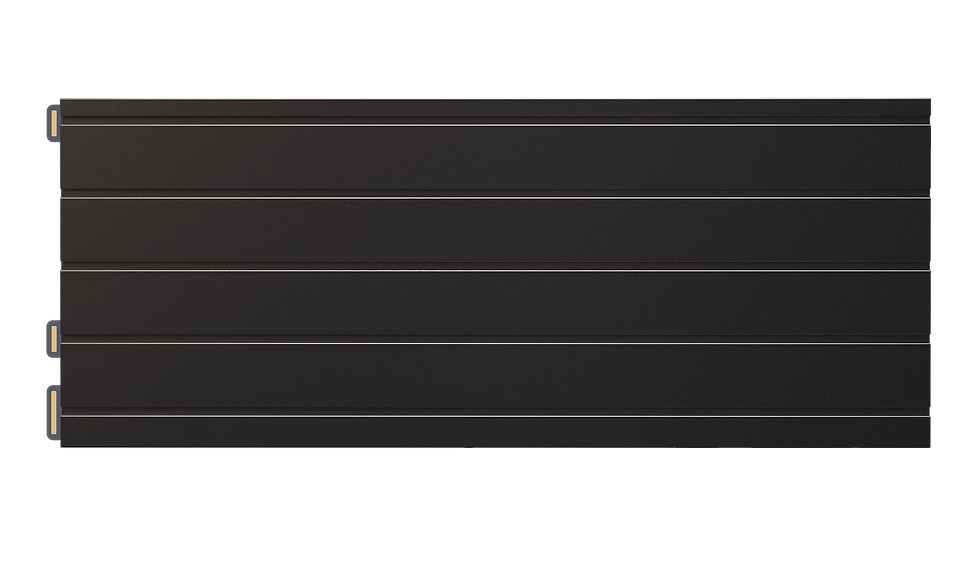

Conductive Panel

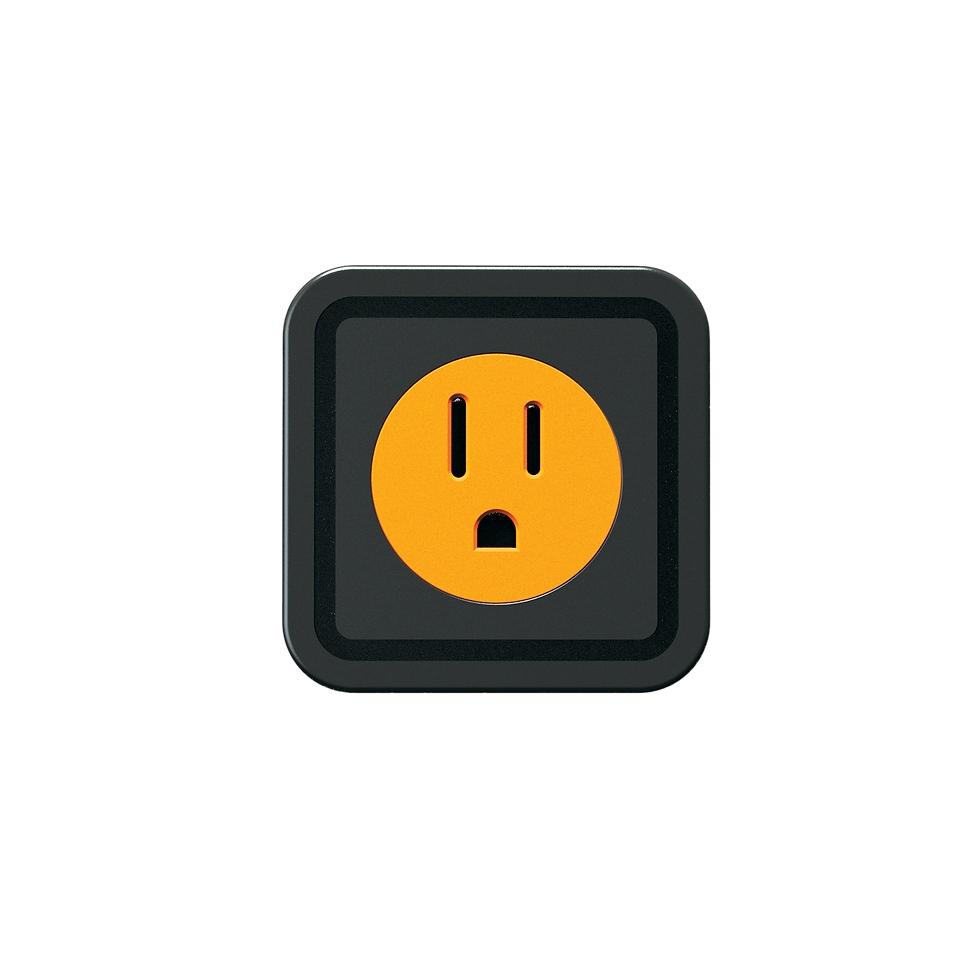

Outlet Module

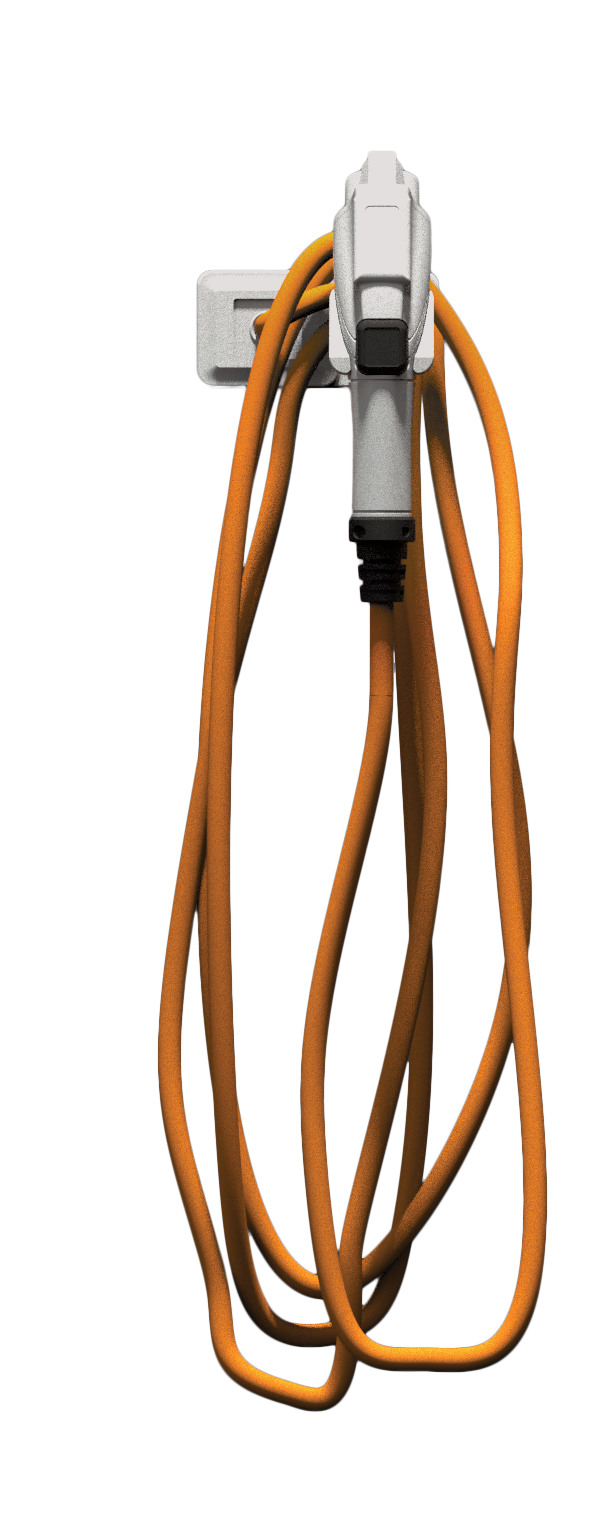

EV Charger Module
The energy source of the system.
Modular power and storage access across the wall.
Hooks onto its respective 120v rail to receive power.
Hooks onto its respective 240v rail to receive power.
Components
1. Connect
2. Distribute
Plug the conductive panels into the Power Box.
Copper busbars distribute power throughout the rails.
120v
120v
240v
120v
120v
240v
3. Attach
Power modules hook into the rails and receive power.
Modules recieve power through conductive charging pad.
How It Works

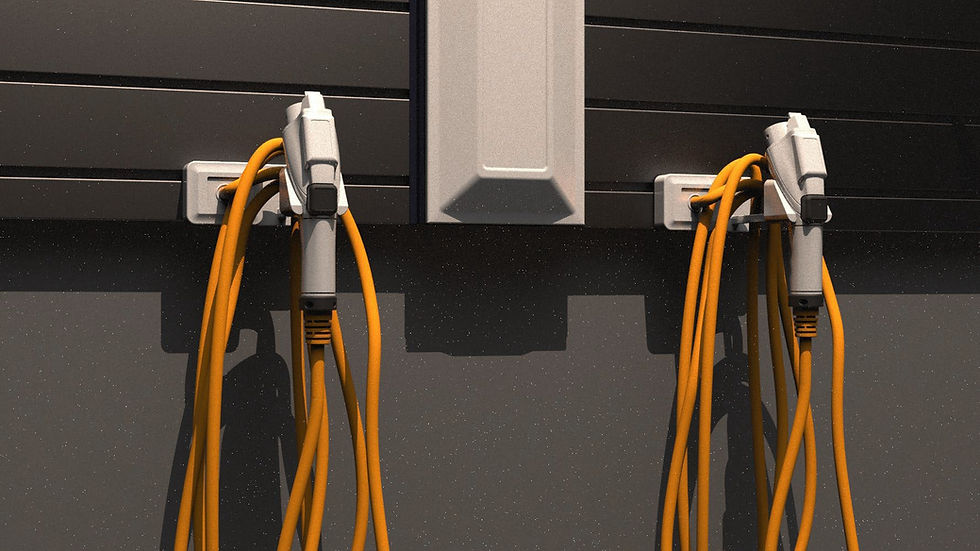

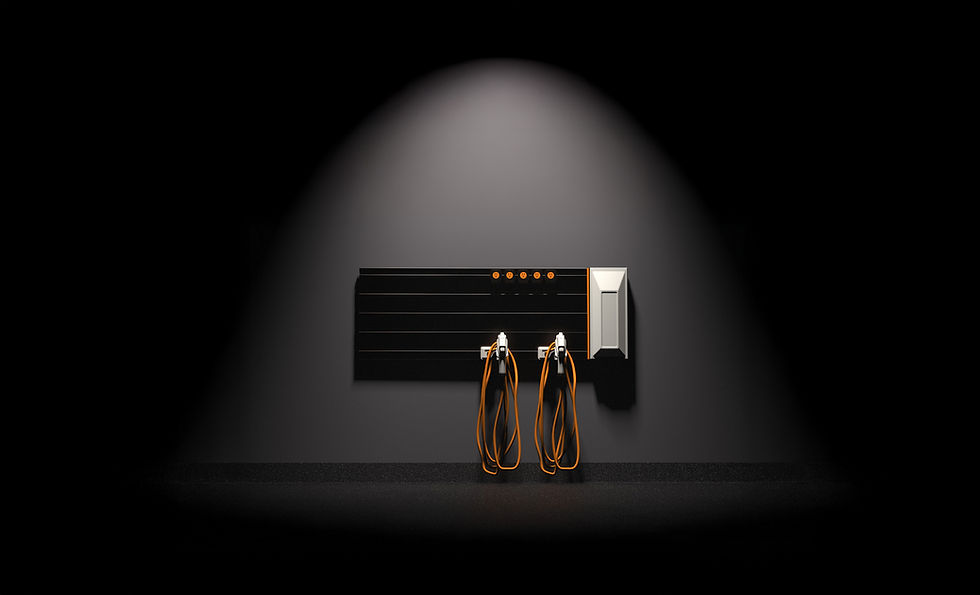

Multiple EV Chargers.
No Extra Installations.
.png)
Twist-To-Lock Outlet Modules
.png)
Unlocked
Locked

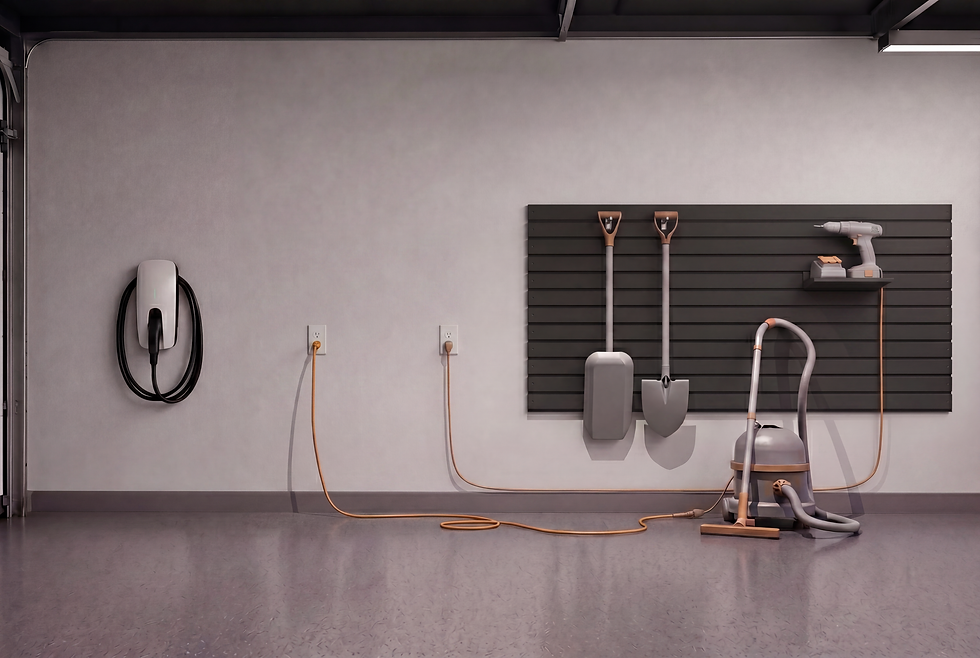

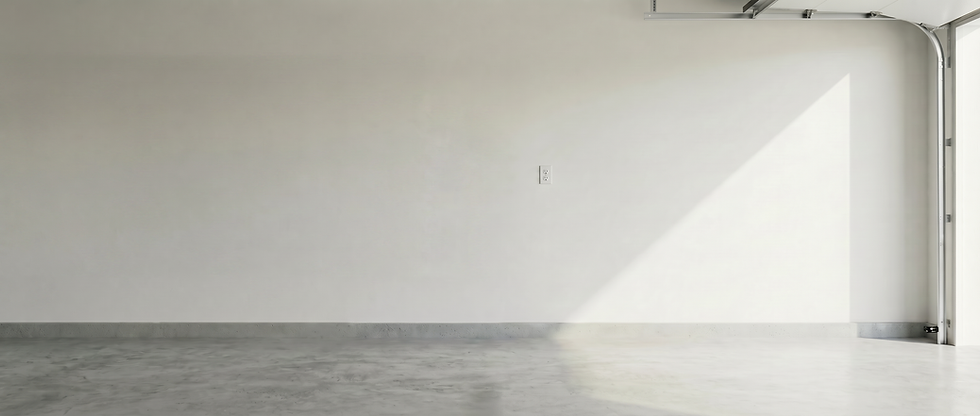

Traditional Garage
Storage and power access compete for the same wall space.

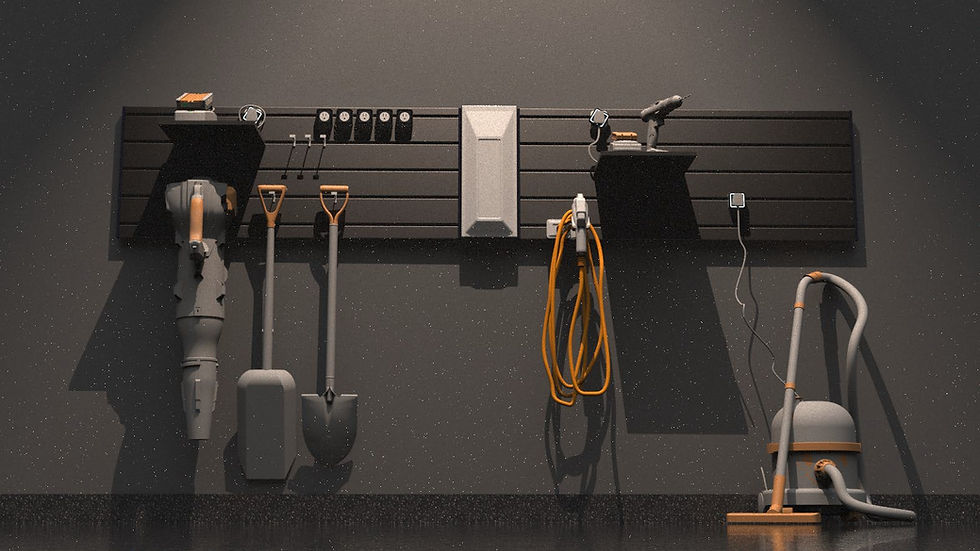

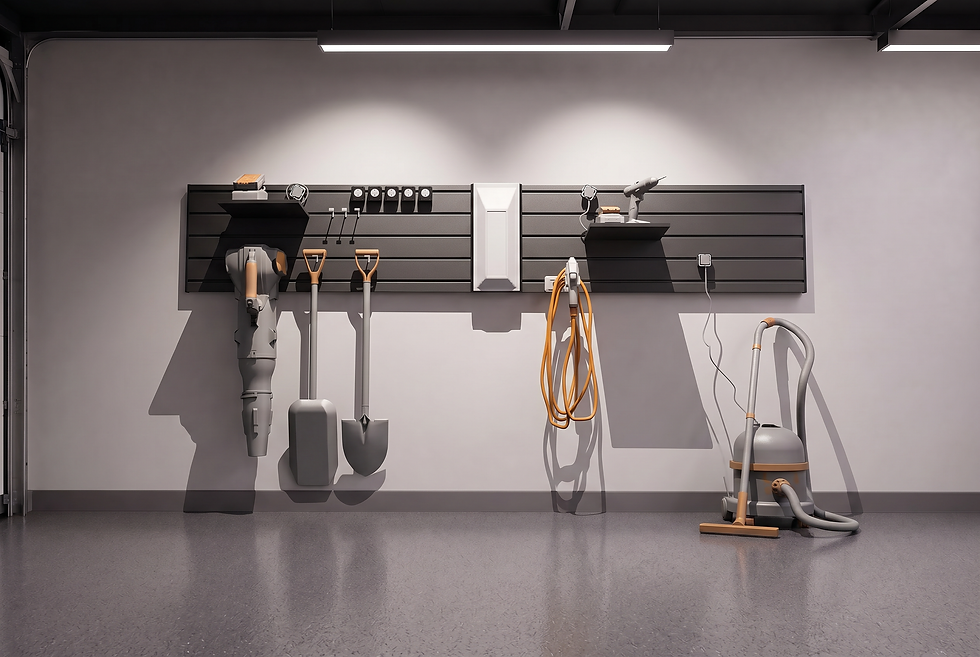

POWER WALL Garage.
Storage and power access are integrated within the same system.
